ROUND BLACK PIPES AND TUBES / M.S.PIPES (H.R)

Manufacturing of round steel tubes and square and rectangular section from H.R / C.R pre-coated galvanized coils starting from 25.40mm OD to 114.30mm OD thickness ranging from 1.60mm to 4.90mm. These pipes will be used for water, gas steam, air, and fire fighting HV-AC, construction, automobiles, bicycles and general engineering industries

Steel pipes and tubes can be used for many purposes such as steel pipes for frames and shafts, steel pipes for bicycle frames, steel pipes for furnitures, steel pipes for various structural purposes, steel pipes for various engineering purposes etc. We have a very wide range of steel pipes and tubes products. The lengths of the steel pipes & tubes range from 4m to 6.5m unless otherwise specified by the customers. We manufacture steel pipes and tubes in various shapes and size such square, round, rectangular.


  • Water and Gas tubes are produced from low - carbon mild steel on Automatic Tube mill by High Frequency Induction Welding process.
  • END USES
    Transmission of Water, gas, oil, and air.
  • SIZE
    » Outside diameter : From 21.4 mm (1/2") to 114.3 mm (4")
    » Wall thickness : 2 mm to 5.4 mm
    » Length : 4 to 7 meter
  • PIPE ENDS
    plain, Screwed and Socketed.
  • SURFACE FINISH
    Black (Self - colored ), Outside mill protective coating.
  • PRODUCTION STANDARDS
    IS - 1239 part1, equivalent BS - 1387, ATSM A53 Grade A.
  • PACKING
    Bare Bundles
  • INSPECTION
    Mill's certificate or inspection by an independent organization authorized by the customer.
  • TESTS PERFORMED
    Chemical test , mechanical test , EC Test , Other as required by the standards.

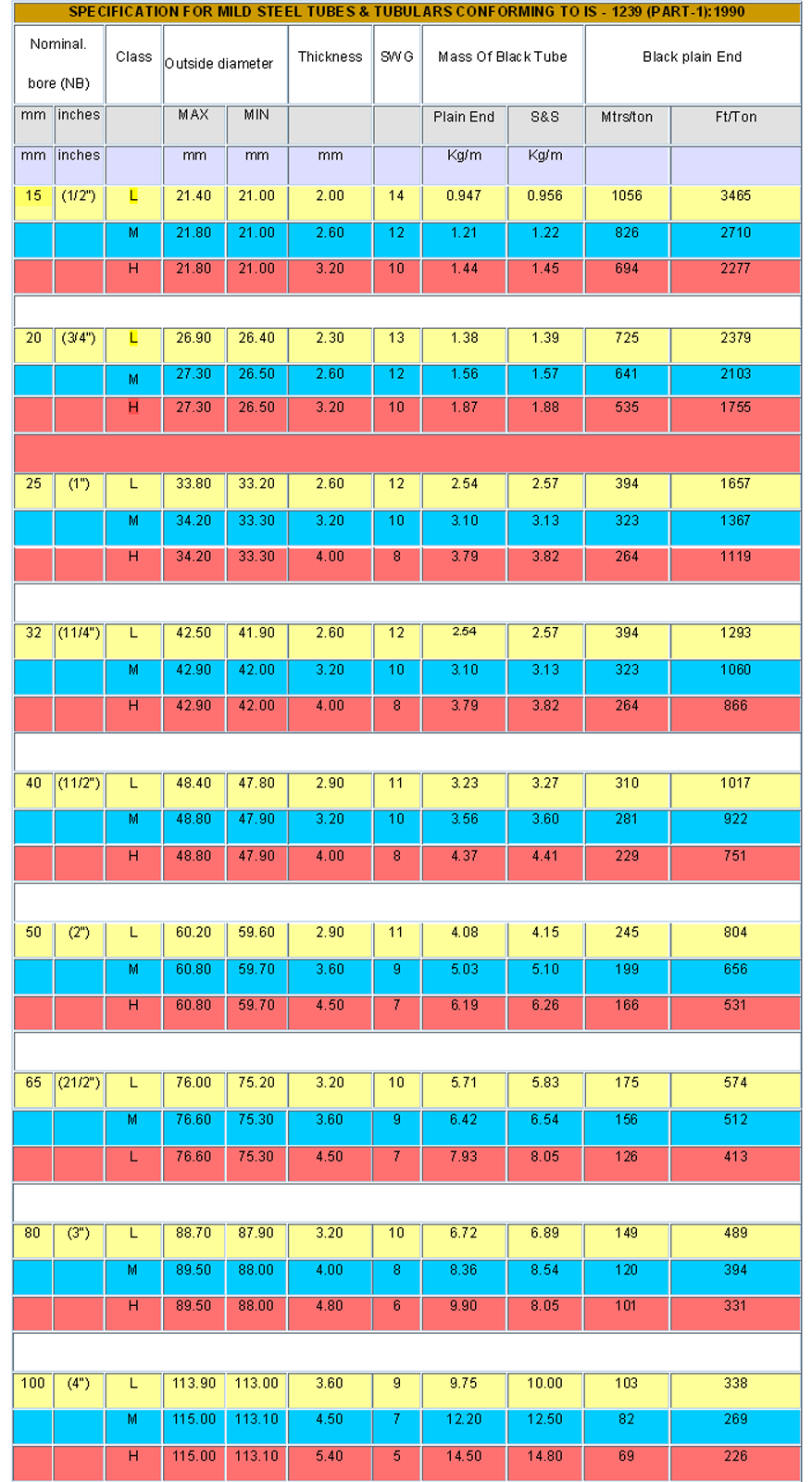

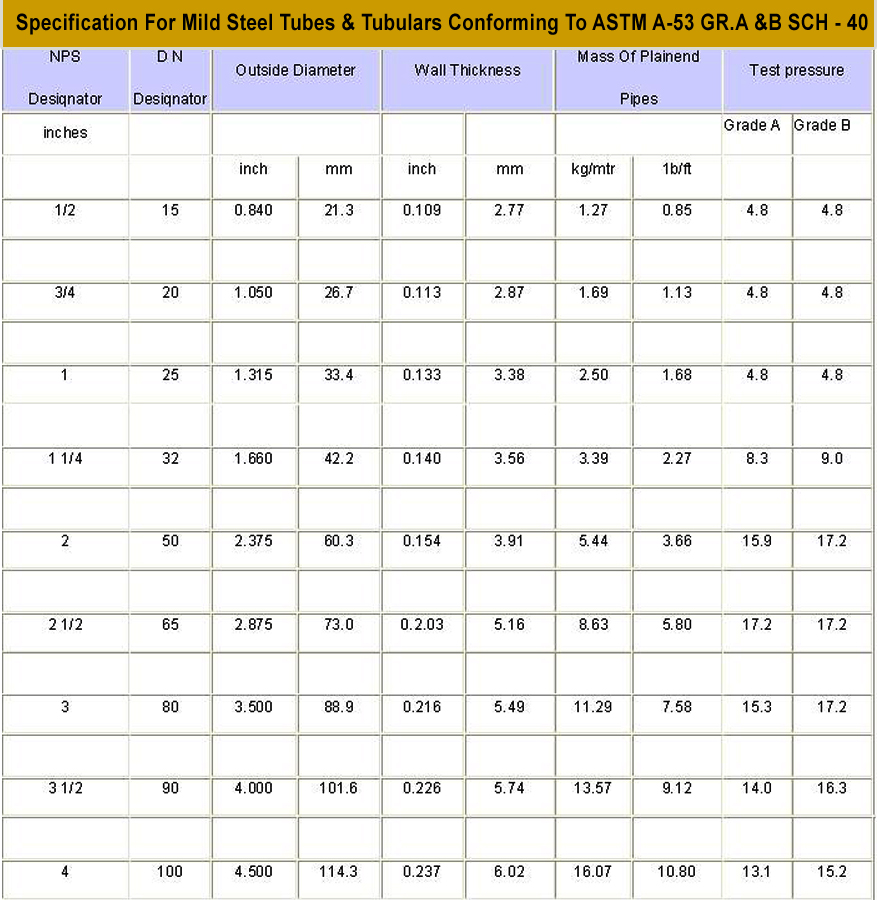

details of the products as per table given below


Tolerance :
Thickness : light : + Not Limited – 8%
Medium &heavy : + Not Limited – 10 %

Length :
Light – medium – Heavy Tubes : Random length of 4 to 7 mtrs or as specified by the Customers.



Tolerances :
Outside Diameter : Pipes size upto & including 1 1/2 inches : + 1% - 0.4 mm
                                    Pipes size 2 inches or above : + 1%
Thickness : + 12.5% (max)
Weight : + 10%

Testing :
Bend Test :
For pipes upto & including 2 inches
Bending Angle 90.
Bending radius 12 times to the OD of tube (no crack in body & weld)

Flattening Test for pipes over 2 inches

  • Flatten upto 2/3 of OD for ductility of weld
  • Flatten upto 1/3 of OD for ductility of steel
  • Full flattening for testing of lamination

Mechanical Properties :

  Grade A Grade B
Yield Strength 205 Mpa (min) 240 Mpa (min)
Tensile Strength 330 mpa (min) 415 Mpa (min)
Elongation As per ASTM A-53

General Engg Purposes Steel Tubes

  • Precision and general Engg. steel tubes are manufactured as cold formed from hot rolled , cold rolled , and hot rolled pickled steel of various physical and chemical properties.
  • END USES
    Machine parts , automobiles , bicycles , furniture, transformer ,General Mech & Engg purpose, ldlers & conveyors etc.
  • SIZE

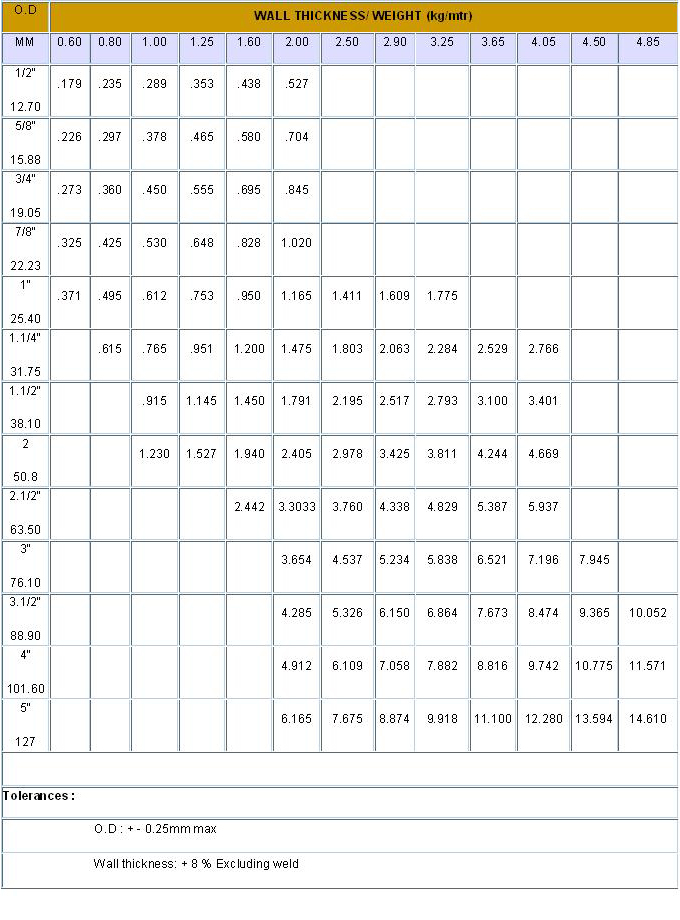

    » Outside diameter : From 12.7 mm (1/2") to 127 mm (5")
    » Wall thickness : 0.6 mm to 4.85 mm
    » Length : Up to 8 m
  • PIPE ENDS
    plain
  • SURFACE FINISH
    Black (Self - colored ), Outside oil coating.
  • PRODUCTION STANDARDS
    Conforming IS - 3074, IS - 3601 , IS - 7138 , IS - 9295 & BS-6323
  • PACKING
    Bare Bundles
  • INSPECTION
    Mill's certificate or inspection by an independent Agency.
  • TESTS PERFORMED
    Dimensional checking , Hydraulic pressure Test , Flattening Test , Drift Test.
